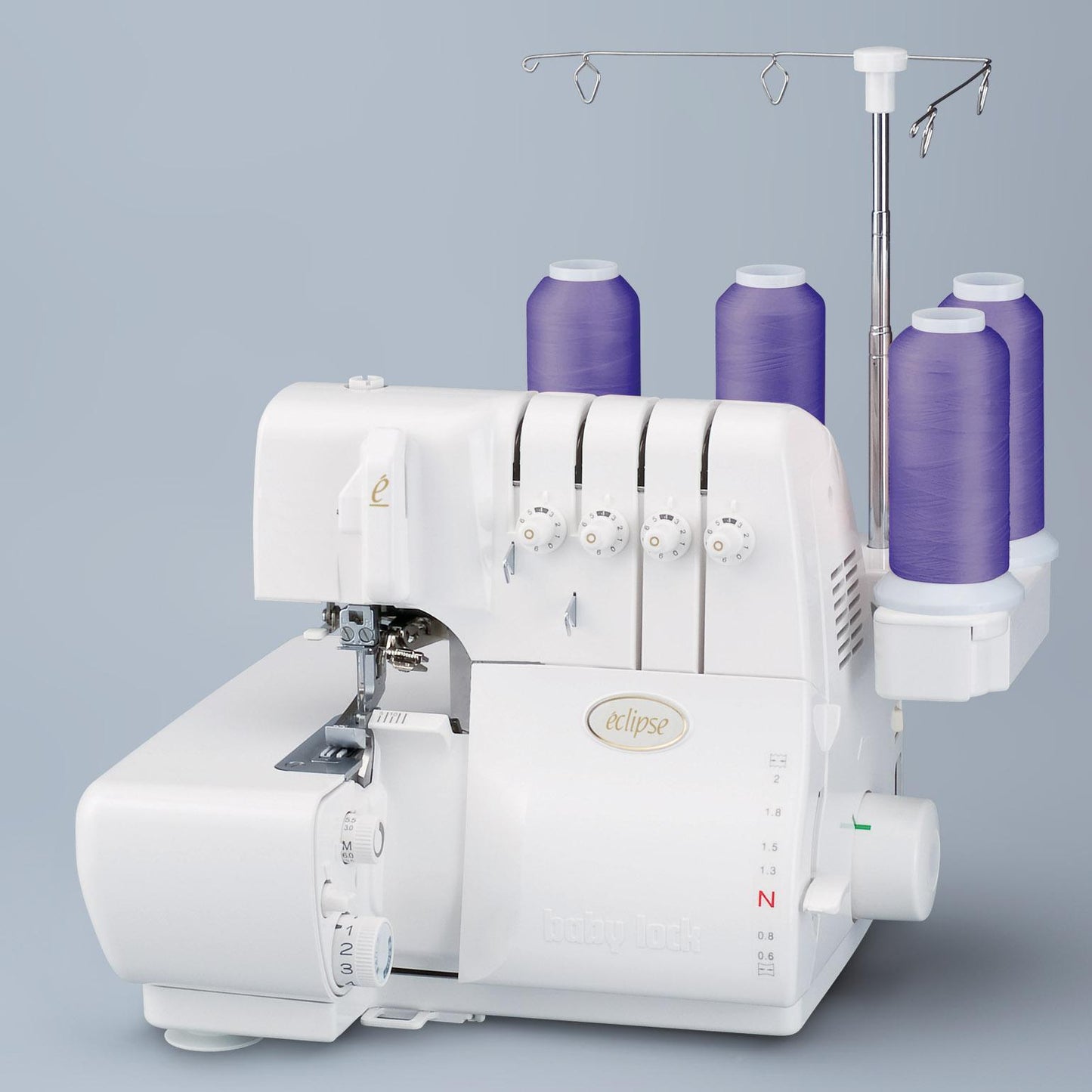

Eclipse
Eclipse
Specifications, accessories and support materials are included below for your reference.
Top Eclipse features:
- JetAir™ Threading for loopers
- Micro-matic twin cam tension system
- Built-in needle threader
- Automatic rolled hem stitch
What's in the box
What's in the box
Downloads
Downloads
Eclipse Specifications
| Specifications | |
|---|---|
| Machine Type | 4-Thread Overlocker |
| Threading System | JetAir™ |
| Key Technology | |
| Number of Threads | 4 |
| RevolutionAir™ Threading – Needles & Loopers | ✘ |
| ExtraordinAir™ Threading | ✘ |
| NEW JetAir™ (easier looper threader engagement) | ✘ |
| JetAir™ Threading | ✔ |
| Tension System | Micromatic Twin Cam |
| Lighting | Standard Globe |
| Throat Space | - |
| True 2 to 1 ratio differential feed - ranging from 0.6 to 2 | ✔ |
| Knee Lift (Presser Foot) | ✘ |
| Variable Speed Control (easily set the maximum speed) | ✘ |
| Exclusive Fabric Support System | ✔ |
| Vertical Needle System – minimises needle deflection | ✔ |
| Advanced Features | |
| Combination Stitch Options | - |
| Coverstitch: triple, wide (6mm), narrow (3mm) & single chain stitch | - |
| Overlocking stitch Options: 4/3/2 Thread | ✔ |
| Exclusive Wave Stitch and Reverse Wave Stitch | ✘ |
| Automatic rolled hem stitch with the turn of a dial | ✔ |
| Flatlock stitch option for seaming and decorative effects | ✔ |
| Stitch Length | 0.75 to 4mm |
| Stitch Width – Overlocking | 1.5 to 7.5mm |
| Stitch Width – Expressive (overlocking & coverstitch combined) | - |
| Heavy duty cutting system – cut thick fabrics easily | ✔ |
| Presser Foot Pressure Adjustment | Adjustable Screw |
| Presser Foot Height | 4.5mm |
| Sewing speed (stitches per minute) | up to 1500 |
| Convenience Features | |
| Thread Stand Tray with Magnet | ✘ |
| Colour Coded Quick Reference Threading Guide | ✘ |
| Built-in Manual Needle Threader | ✔ |
| Position of presser foot lever | Rear |
| Included Foot | Grooved Foot |
| Built in Thread Cutter | ✔ |
| Guard plate for needle screws | ✘ |
| Built in Accessory Storage | ✔ |
| Saftey Switches | ✘ |
| Needle Drop Tray | ✔ |
| Electronic Foot Control | ✔ |
| Other Features | |
| Needle Type | HAx1SP |
| Machine Weight | 7.5KG |
| Made in Japan & 5 Year Conditional Warranty | ✔ |
| Optional Accessories | |
| Optional Feet Available | 11 |
| Optional Attachments | - |
| Compatibility with Knit Binders/Lap Seam Binder | - |
| Clear Extension Table Compatibility | CT-1 |
-
